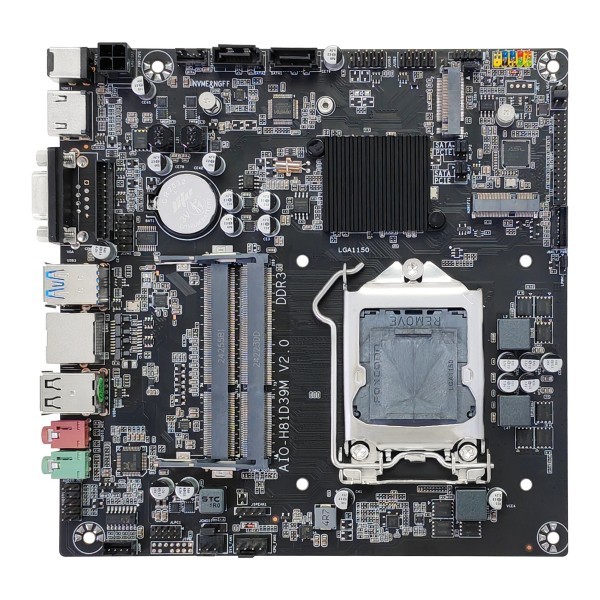

    Low Power Support Wifi lga 1150 AIO All In One H81 Computer Mini Itx Motherboard

    Ask Lasest Price
    Model Number : AIO-H81D39S-V1.0
    Supply Ability : 10000pcs/Day
    Delivery Time : 5-8 working Days
    • Product Details
    • Company Profile

    Low Power Support Wifi lga 1150 AIO All In One H81 Computer Mini Itx Motherboard

    Factory wholesale low power Support wifi All In One mini itx H81 Computer motherboard


    Features

    Support Intel Celeron, Pentium, I3, I5, I7 series processors and LGA1150 socket.

    Support dual 204-Pin 16GB DDR3/1600MHz memory slots.

    Supports 5.1-channel ALC897 chip with onboard power amplifier.

    Support two 7Pin SATA interfaces; 1 MSATA

    Support 1 serial port and RS232 mode.

    Support 2 USB3.0 and 6 USB2.0.

    Support Mini PCIE expansion slot.

    Support 1 WIFI/4G module.

    Support one RJ45 Gigabit NIC interface.

    Support VGAP/HDMI/LVDS display interface, and support synchronous dual display.

    ▲ Support Win7/Win10 32/64 bit operating system and Linux system.

    ▲ Support DC input of DC12-19V power supply.


    Model NameAIO-H81D39S-V1.0 all in one pc motherboard
    processorIntel Celeron, Pentium, I3, I5, I7 series processors
    SouthbridgeH81 Chipset
    memorytechnology Dual channel DDR3 1600MHz
    maximum capacity Supports up to
    Memory slot 2*204-Pin SO-DIMM(Non-ECC)
    Rear I/ODC power interface 1 standard 2.5mm DC12V/19V power socket
    HDMI Provide a standard D socket, support HDMI1.2, and the maximum resolution is 2560*1600@60Hz.
    VGA Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.
    Ethernet 1 Realtek Gigabit NIC
    Audio 1 (Line-out, Mic-in)
    USB port 2 USB 3.0, 2 USB2.0
    Internal connectorFAudio 1 2*5Pin pin (Mic-in, Line-out)
    power amplifier 1*4Pin 2.0mm black socket, which can support up to two 5W2 speakers.
    JUSB port 4 (one FUSB can switch out two USB2.0 interfaces)
    Mini PCIeSupport WIFI/4G module
    FAN2 (1 SYS_FAN; 1 CPU_FAN)
    LVDS interfaceSupport single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.
    JBL11*4Pin 2.0mm beige socket, which supports manual adjustment of backlight brightness of LVDS screen.
    JLPC interface1 2*5Pin LPC debugging interface
    serial ataTwo 7Pin SATA interfaces and two 4Pin power sockets, supporting SATA3.0/SATA2.0.
    serial port1 (RS232 mode only)
    MSATASupport MSATA hard disk, SATA3.0 speed.
    JVGA1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).
    PWR interface1 standard 2x2Pin power socket, also can support 2Pin Phoenix terminal.
    environmenttemperature range working environment:Temperature:-10 ~ 60℃ Humidity: 5%~95% Storage environment Temperature: -40~85℃ Humidity: 5%~95%
    Physical size170 x 170 mm

    AIO-H81D39S-V1.02 1.jpg

    AIO-H81D39S-V1.02 2.jpgAIO-H81D39S-V1.02 3.jpgAIO-H81D39S-V1.02 4.jpg

    motherboard factory 33.jpg

    FAQ

    Q1. Can I get a sample for testing?

    Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.

    Q2. What's your MOQ?

    Re: MOQ 1 pcs.

    Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?

    Re: Yes we can. The main advantage of our factory is customization,The charges for OEM service depends on the different level of customize. the process of customization is

    following:

    1) provide your specific requirement.

    2) our design engineer draw the design draft.

    3) you confirm the design draft.

    4) we start produce it. EXCALY contact information:Whatsapp:+8615008476368, Wechat:15008476368, skype:sophiagiga

    Q4. Can you print my logo on motherboard ?

    Re: Yes, we can silkscreen logo on heatsink, bios as open computer show your Logo

    MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.

    Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?

    Re: Yes it can be working in 24h*7 days, working temperature range-10℃~60℃, storage temperature range-40℃~70℃

    Q6. What is the lead time of your products?

    Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on model and order qty) ,we will test the model

    to insure the quality before shipping.

    Q7. What payment method do you accept?

    Re: We accept T/T,Paypal, Western Union

    Q8. How will you delivery the device to me?

    Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.

    Q9.What's the warranty?

    Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories)
