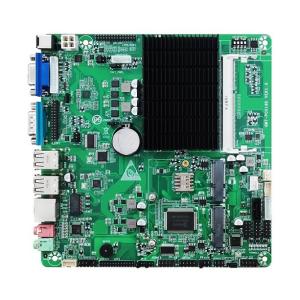

    OPS Pluggable Computer Conference J1900 MINI ITX Motherboard Intel Bay Trail-M/D Series

    Ask Lasest Price
    Model Number : GW7-POS19D-V1.0
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    OPS Pluggable Computer Conference J1900 MINI ITX Motherboard Intel Bay Trail-M/D Series

    OPS Pluggable Computer Conference MINI ITX Motherboard Intel Bay Trail-M/D series j1900 GW7-POS19D-V1.0


    Features (product features)

    Support Intel Bay Trail-M/D series processors.

    Support DDR3L memory, up to 8GB 1333MHz SDRAM.

    Support stereo dual-channel ALC887 chip with onboard power amplifier.

    Support 6 serial ports, 1 parallel port and 1 PS2 pin interface.

    Support 9 USB2.0.

    support MSATA

    Support Mini PCIE expansion slot (including 8pin SIM card slot)

    Support one 7Pin SATA interface.

    Support one RJ45 Gigabit NIC interface.

    Support VGA/EDP/LVDS display interface, and support synchronous dual display.

    Support single power supply 12V input.

    Support Windows7 and Windows10 32/64 bit operating systems.


    Model Name

    GW7-POS19D VER:1.1

    processor

    Intel Bay Trail-M/D series processors

    CPU

    Such as: J1800, J1900, N2940, N2930, N2840.

    memory

    technology

    Single channel DDR3L 1333MHz

    maximum capacity

    8GB

    Memory slot

    1 x 204Pin DDR3L SO-DIMM

    Post I/O

    power source

    1 standard 2.5mm DC power socket

    serial port

    Support one onboard DB9 serial port (RS232 mode only)

    VGA

    Standard DB15 socket (VGA interface and JVGA interface can only be selected)

    Ethernet

    1 Realtek Gigabit NIC

    USB port

    4 USB2.0 interfaces

    Audio

    2 (Mic-in, Line-out)

    Internal connector

    USB port

    5 USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces)

    PS2 interface

    1*7Pin 2.0mm white socket, which can connect PS2 keyboard and PS2 mouse.

    serial port

    5 (serial ports all support RS232 mode, among which COM2 and COM3 support RS422 and RS485 mode)

    parallel port

    1 2*13Pin pin

    JVGA

    Supports 1*12Pin pins (VGA and JVGA can only be selected)

    LVDS interface

    Support single (dual) channel 18(24) bits, (LVDS and EDP can only be selected)

    EDP interface

    Support 4 LANE eDP channel

    Audio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

    Mini-PCIe

    1 Mini PCIe slot of full-length card (supporting WIFI and 4G modules)

    MSATA

    Support SSD hard disk

    serial ata

    1 7Pin SATA interface, supporting SATA 2.0

    GPIO

    8-way bidirectional 3.3V

    PWR interface

    1 standard 2x2 Pin power socket

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 6W Full load power consumption: 32.4W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-10 ~ 60℃ Humidity: 5%~95%

    Temperature: -40~85℃ Humidity: 5%~95%

    DC power supply

    adapter

    DC 12V power input

    Physical size

    measure

    170 mm x 170 mm
